1. Pyramidal Absorber

222



  • Good electromagnetic wave absorption performance;
  • Working temperature: -40° ~120° C
  • Power tolerance: 1kW/m2
  • Fire resistance performance meet standards as ISO 11925-2,UL 94 HBF, and NRL8093 Test1, 2,
  • Bottom size: 605mm × 605mm±5mm





Model HS-P3 HS-P5 HS-P8 HS-P12 HS-P18 HS-P24 HS-P36 HS-P45
Size (in) 3 5 8 12 18 24 36 45
Total height (cm) 7.62 12.7 20.3 30.5 45.7 61 91.5 115
Pyramid height (cm) 5.9 10 15.3 25.5 38.2 50.8 76.2 95
Pyramid width (cm) 3.5 5 6.5 10 15.1 20.2 30.2 30.2
Bottom height (cm) 1.72 2.7 5 5 7.5 10.2 15.3 20
Pyramid 256 144 81 36 16 9 4 4








Performance

 0.3GHZ -31 -31 -32
0.5GHZ -28 -28 -32 -32 -35
1GH -30 -30 -30 -34 -34 -40
3GHZ -25 -30 -35 -50 -46 -50 -50 -50
6GHZ -30 -40 -40 -50 -51 -52 -52 -50
10GHZ -40 -46 -50 -50 -50 -51 -51 -50
18GHZ -45 -50 -51 -50 -50 -50 -50

-50
36GHZ -50 -50 -50 -50 -50 -50 -50 -50
50GHZ -50 -50 -50 -50 -50 -50 -50 -50
60GHZ -50 -50 -50 -50 -50 -50 -50 -50
70GHZ -50 -50 -50 -50 -50 -50 -50 -50





123
444

2.Membrane Pyramidal Absorber

333





  • The electromagnetic wave absorption performance not affected by the membrane.
  • Working temperature: -10° ~70° C;
  • It is recommended to use this material on the chamber door or other locations where frequent movement is required.
  • Long service time;
  • Fire resistance performance meet standards as ISO 11925-2,UL 94 HBF, and NRL8093 Test1, 2,
  • Bottom size: 605mm × 605mm±5mm
  • Power tolerance: 1kW/m2



Model HS-P3-R HS-P5-R HS-P8-R HS-P12-R HS-P18 HS-P24-R HS-P36-R HS-P45-R
Size (in) 3 5 8 12 18 24 36 45
Total height (cm) 7.62 12.7 20.3 30.5 45.7 61 91.5 114.3
Pyramid height (cm) 5.9 10 15.3 25.5 38.2 50.8 76.2 95
Pyramid width (cm) 3.5 5 6.5 10 15.1 20.2 30.2 30.2
Bottom height (cm) 1.72 2.7 5 5 7.5 10.2 15.3 20
Pyramid 256 144 81 36 16 9 4 4
 Perform-ance 0.3GHZ -31 -31 -32
0.5GHZ -28 -28 -32 -32 -35
1GH -30 -30 -30 -34 -34 -40
3GHZ -25 -30 -35 -50 -46 -50 -50 -50
6GHZ -30 -40 -40 -50 -51 -52 -52 -50
10GHZ -40 -46 -50 -50 -50 -51 -51 -50
18GHZ -45 -50 -51 -50 -50 -50 -50 -50
36GHZ -50 -50 -50 -50 -50 -50 -50 -50
50GHZ -50 -50 -50 -50 -50 -50 -50 -50
60GHZ -50 -50 -50 -50 -50 -50 -50 -50
70GHZ -50 -50 -50 -50 -50 -50 -50 -50





Comparison between normal pyramidal absorber and membrane pyramidal absorber:

  1. Similarity: the size, height and test value of both absorbers are the same
  2. Difference: the membrane pyramidal absorber is more beautiful, durable and weather resistant, with no carbon powder leaking.

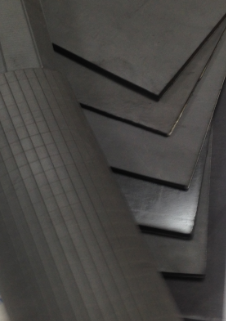

3.Wave-absorbing film
555

  • Good electromagnetic wave absorption performance;
  • Thin and flexible;
  • Good weather resistance, and theappearance and performance do not change after salt spray test;
  • Passed RoHS inspection;
  • Working temperature: -40° ~120° C

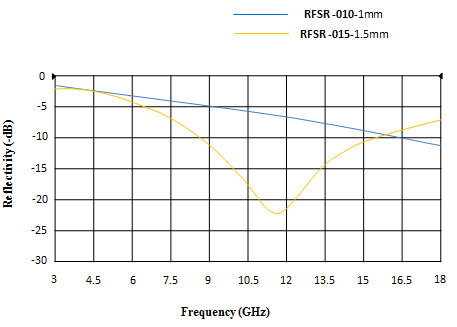

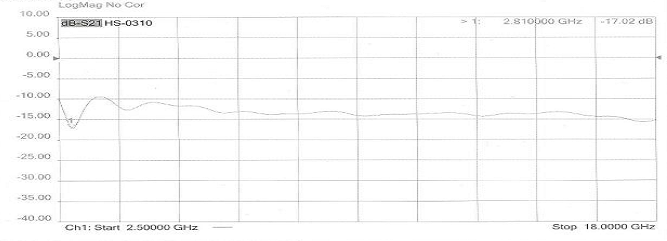

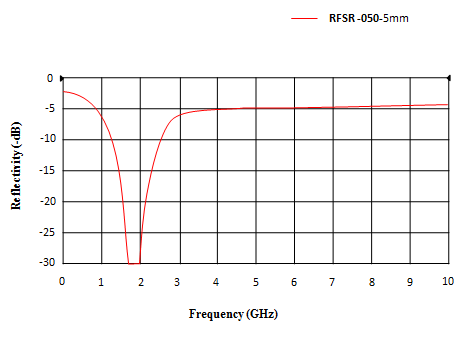

Specifications and electromagnetic absorption characteristics:

Model Thickness Applied frequency Size Service life (year)
RFSR-10 1 mm ± 0.2mm 20GHz~ 300*300mm 8
RFSR-15 1.5 mm ± 0.2mm 8.5GHz~15GHz 200*200mm 8
RFSR-30 3mm ± 0.2mm 2.4GHz ~18GHz 300*300mm 8
RFSR-50 5mm ± 0.2mm 850MHz~6GHz 200*200mm 8





777


666
888







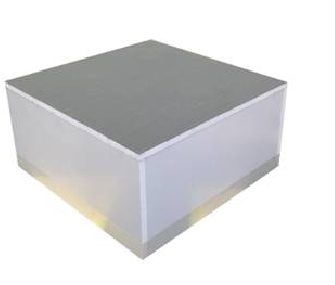

4.Wave-absorbing walkway

999

A microwave absorbing foam board is used as the base material,

and its interior is a complete set of pyramidal wave absorber.

Excellent bearing and abrasion resistance.

In addition to basic size, product of special specification and size can be customized.





Specifications and electromagnetic absorption characteristics

Standard size 60*60cm
Standard height 30、60cm
Applicable frequency 300MHz~50GHz
Load capacity 150KG
Model HS-WW12 HS-WW24
Size(cm) 60*60*30 60*60*60


Performance

 0.3GHZ -31
0.5GHZ -32
1GH -30 -34
3GHZ -50 -50
6GHZ -50 -52
10GHZ -50 -51
18GHZ -50 -50
36GHZ -50 -50
50GHZ -50 -50
60GHZ -50 -50
70GHZ -50 -50
